Heatmiser UH6 - 6 Zone Compact 230v Wiring Centre
  • Heatmiser UH6 - 6 Zone Compact 230v Wiring Centre

Heatmiser UH6 - 6 Zone Compact 230v Wiring Centre

$169.00

4 Great reasons to buy from us:
Secure Ordering
Fast Shipping
100% Satisfaction
Easy Returns

  • Description

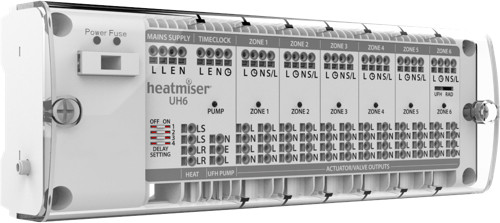

Heatmiser UH6

The Heatmiser UH6 is our 6 Zone underfloor heating wiring centre designed to work with our 230v Thermostats.

The UH6 wiring centre provides central switching and is therefore ideally situated next to the underfloor heating manifold. On demand from any zone, a 230v output is provided to switch the relevant zone actuators, underfloor heating pump and valve. A volt free connection is supplied for the boiler, making it compatible with almost all types of boilers.

Heat & UFH Pump Delay

When there’s a demand it is possible to set a timed delay, before activating the Pump & Heat* outputs

Creepage Function

During hot weather the heating may not be required as often, which means after long periods of the UFH pump not being used, the pump can seize and refuse to operate.

To prevent this, it is good practice to operate the pump once a day, the creepage function does this for you. Once enabled the UH6 wiring centre will operate the pump for 1 minute, only if the outputs have not been operated by a thermostat, within the preceding 24 hours. This function does not operate the HEAT output.



Up to 4 actuators can be connected to each zone.

  • Central wiring for up to 6 zones
  • DIN Rail Mounting Option (DIN Rail not included)
  • Output for underfloor heating valve and pump activated when any thermostat calls for heat
  • Actuator outputs: 230v
  • Dimensions (LxHxD) 265x95mm



Datasheet Download
×
